マックス鉄筋結束機 TWINTIER
RB401T-E


Ergonomic solution for backbreaking slab work
The RB401T-E is ergonomically designed to reduce back strain. The extended frame allows you to stand-up and tie rebar for concrete slabs.

-
Combination of 2 rebars
-

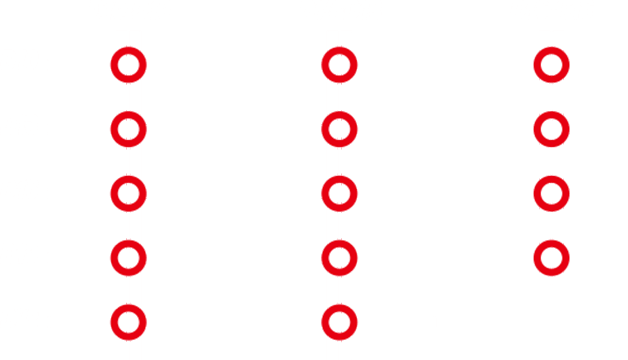

Combination of 3 rebars
-
Combination of 4 rebars
What is the TWINTIER?FEATURES
REDUCES BACK STRAIN
Changes in lumbar compressionforce during tying motion


Up to88%
Less Effort

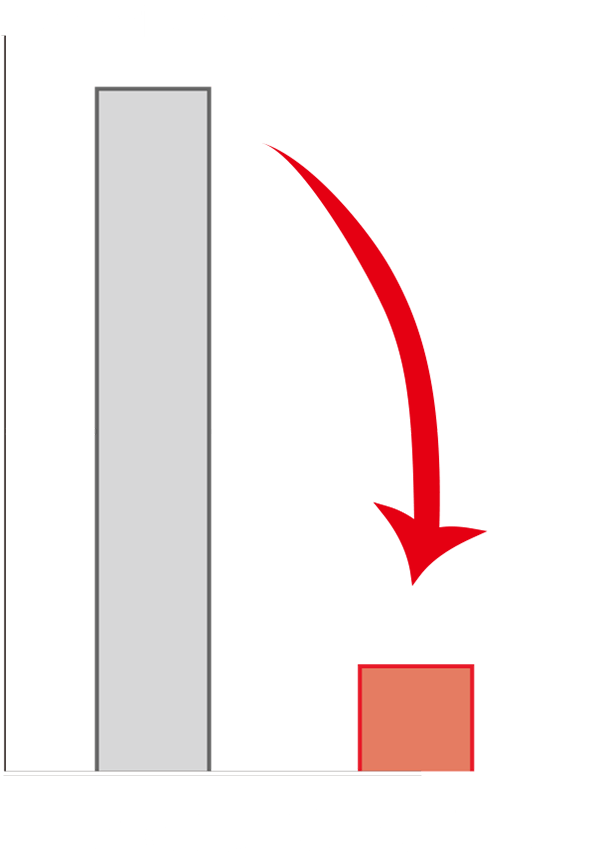

Calorie consumption has been reduced by 50% because the tool enables you to tie rebar without bending over.

Up to48%
Less Compression
Extended Frame makes it possible to tie rebar cross sections without bending over.
Eliminates the hassle of bending over to tie rebar and alleviate painful lumbar compression.
Simulated by
Simulated “Lumbar compression force” by modeling simulation software (Anybody).
AnyBody Modeling System™ is the registered trademarks of AnyBody Technology A/S in Denmark, the U.S. and/or other countries.


ERGONOMIC DESIGN
Trigger-less Technology

No trigger pulling
on this tool.
An automatic contact mechanism allows the tool to instantly tie when pushed down over a rebar intersection.
No trigger pulling on this tool.
Wider arm space

200%wider
than RB441T
Long nose attachment guides the tool mouth to slide the contact switch into the rebar with ease. No need to look at the mouth of the tool from the side.
Adjustable handle

Handles are adjustable to 2 levels
Two handed operation reduces effort and moving the tool.
Handles are adjustable to 2 levels of position.
SAME TWINTIER SYSTEM BENEFITS

Same 14.4 Battery and
φ1.0mm TW1061T platform
OTHER KEY DETAILS
Attachment arms

Required Height | Long | Short |
D10 x D10 | 56mm~ | 36~56mm |
D13 x D13 | 50mm~ | 30~50mm |
Required Height | Long | Short |
D10 x D10 | 56mm~ | 36~56mm |
D13 x D13 | 50mm~ | 30~50mm |
2 types
Nose attachment
There are two nose attachment available depending on the clearance between the rebar and the ground.

Replaceable
Nose attachment
Once a nose is worn out, simply replace the
attachment. No need for repair.
Torque dial

Torque dial located near your hand for easy adjustment
Torque dial. This dial allows you to adjust wire tension.
Resetting wire jams

Easy to clear wire jams
Wire jams are easily cleared by turning the tool OFF and ON.
SPEC
DESCRIPTION | RB401T-E |
---|---|
WEIGHT | 4.6kg |
DIMENSIONS (H x W x L) |
322 × 408 × 1,100mm |
APPLICABLE REBAR | D10×D10~D20×D20, D22×D13×D13, D13×D13×D13×D13 |
TYING SPEED | Less than 0.7 seconds |
TIES PER CHARGE | 4000 |
AVAILABLE TIE WIRE | TW1061T, TW1061T-EG, TW1061T-PC, TW1061T-S |

TIEWIRE
DESCRIPTION | TW1061T | TW1061T-EG | TW1061T-PC | TW1061T-S |
---|---|---|---|---|
MATERIAL AND COATING | Annealed wire | Electro-galvanized wire | Poly-coated wire | Stainless Steel wire |
GAUGE | φ1.0mm | φ1.0mm | φ1.1mm | φ1.0mm |
DESCRIPTION | TW1061T |
---|---|
MATERIAL AND COATING | Annealed wire |
GAUGE | φ1.0mm |
DESCRIPTION | TW1061T-EG |
---|---|
MATERIAL AND COATING | Electro-galvanized wire |
GAUGE | φ1.0mm |
DESCRIPTION | TW1061T-PC |
---|---|
MATERIAL AND COATING | Poly-coated wire |
GAUGE | φ1.1mm |
DESCRIPTION | TW1061T-S |
---|---|
MATERIAL AND COATING | Stainless Steel wire |
GAUGE | φ1.0mm |
