マックス鉄筋結束機 TWINTIER RB441T

First TWINTIER to revolutionize rebar tying

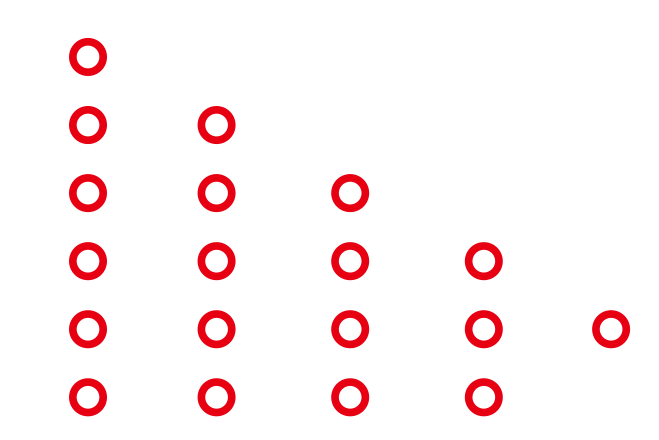

This model can tie rebar from #3x#3 to #7 x #7.
Performs its best on walls, columns, beams and residential foundation.




  • Combination of 2 rebars

  • Combination of 3 rebars

  • Combination of 4 rebars

What is the TWINTIER?FEATURES

Dual wire mechanism increases tying speed

Dual wire feeding mechanism increases tying speed significantly.
The mechanism improve efficiency with the speed which is approx. 1/2 seconds per a tie.

Impressive wire bending mechanism

Wire bending mechanism reduces the tie height by half. The tool can be used for all applications with strict concrete surface distance.

Tying force inceased while using less wire!
Wire pulling back mechanism

Tying force increase significantly because of pulled back mechanism. Less wire changing required because each reel uses less wire.
Frequency of changing reel since ties per a coil increase by 2 times.

TW1061T TW1061T-EG TW1061T-PC
#3 x #3 265 265 230
#4 x #4 240 240 210
#5 x #5 215 215 180
#8 x #4 x #4 180 180 155
#3 x #3
TW1061T 265
TW1061T-EG 265
TW1061T-PC 230
#4 x #4
TW1061T 240
TW1061T-EG 240
TW1061T-PC 210
#5 x #5
TW1061T 215
TW1061T-EG 215
TW1061T-PC 180
#8 x #4 x #4
TW1061T 180
TW1061T-EG 180
TW1061T-PC 155

Other key details that improve the tool

Front magazine placement

The magazine is placed at the front of the main body to optimize body balance when workers ties rebars facing down for flat or deck work.

Thin arm

Thin arms allowing workers to easily see rebar intersections.

Large Arm Guide

With a large arm guide, application range become broad.
Big conbination of rebar can be tied with the tool up to over 2inch(#3 x #3 - #7 x #7).

SPEC

DESCRIPTION RB441T
WEIGHT 5.6lbs
DIMENSIONS
(H x W x L)
11-1/2" x 4-3/4" x 13"
APPLICABLE REBAR #3 x #3 - #7 x #7 (up to #5 x #5 + #4 x #4)
TYING SPEED Apprx. 1/2 seconds
TIES PER CHARGE 4000
SAFETY MECHANISM Trigger lock
AVAILABLE TIE WIRE TW1061T, TW1061T-EG, TW1061T-PC, TW1061T-S

TIEWIRE

DESCRIPTION TW1061T TW1061T-EG TW1061T-PC TW1061T-S
MATERIAL AND COATING Annealed wire Electro-galvanized wire Poly-coated wire Stainless Steel wire*Changing tool to stainless mode is required.
GAUGE 19Ga 19Ga 19Ga 19Ga
DESCRIPTION TW1061T
MATERIAL AND COATING Annealed wire
GAUGE φ1.0mm
DESCRIPTION TW1061T-EG
MATERIAL AND COATING Electro-galvanized wire
GAUGE φ1.0mm
DESCRIPTION TW1061T-PC
MATERIAL AND COATING Poly-coated wire
GAUGE φ1.1mm
DESCRIPTION TW1061T-S
MATERIAL AND COATING Stainless Steel wire
GAUGE φ1.0mm
